ZEOSORB Filter Media

ZEOSORB Filter Media

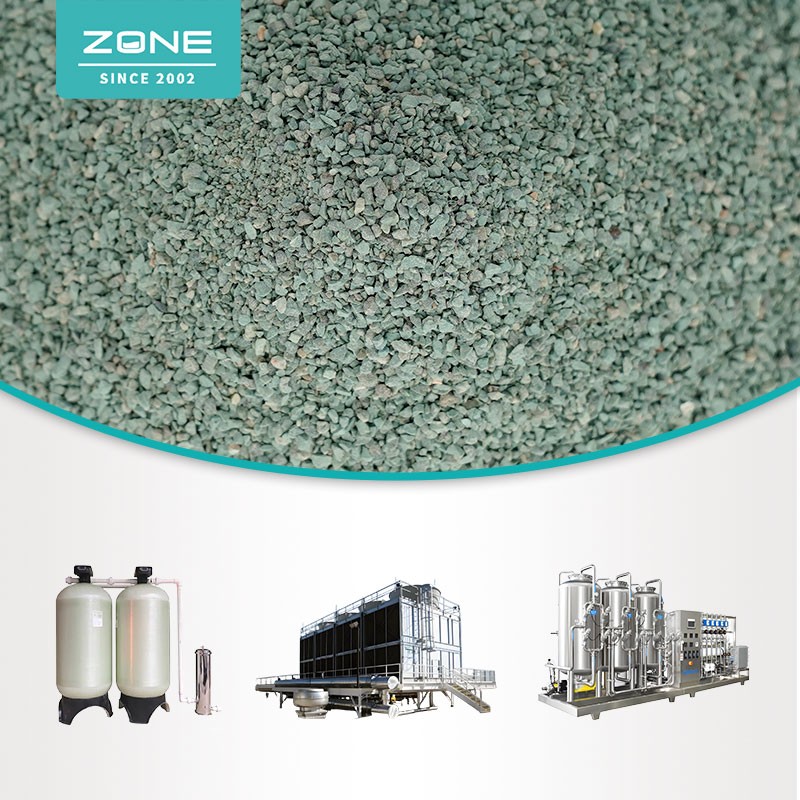

   ZEOSORBis a high-purity, natural aluminosilicate (zeolite) mineral filter media . It is engineered for superior filtration and adsorption in a wide range of water treatment applications, from municipal wastewater to industrial process water.

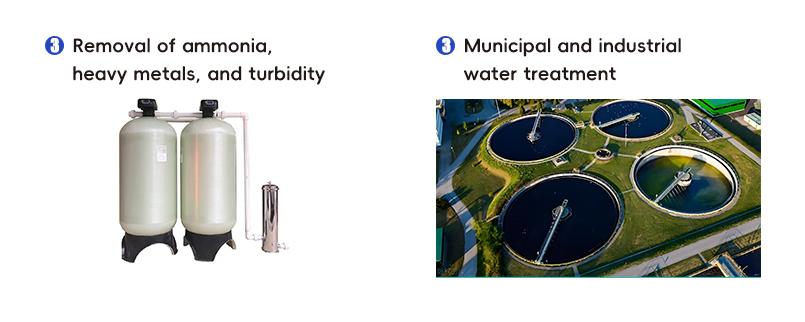

   Its extremely high surface area and microporous structure allow it to physically filter particles down to 3 microns and adsorb contaminants like ammonia, heavy metals, and dissolved organic matter. The anticipated filter bed life for ZEOSORB is about 10 years.

TECHNICAL SPECIFICATIONS:

Project	Parameters

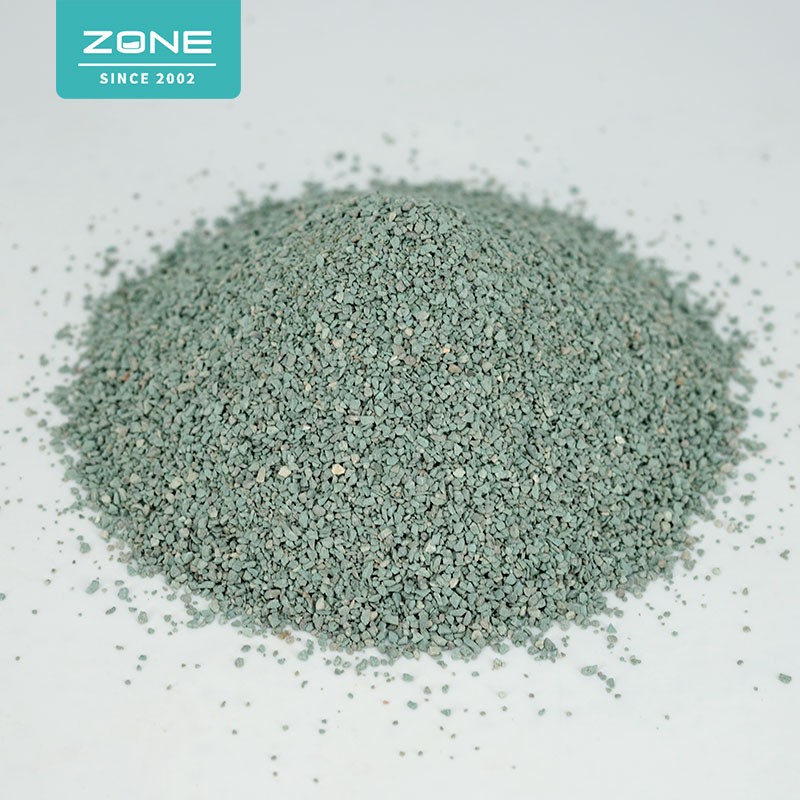

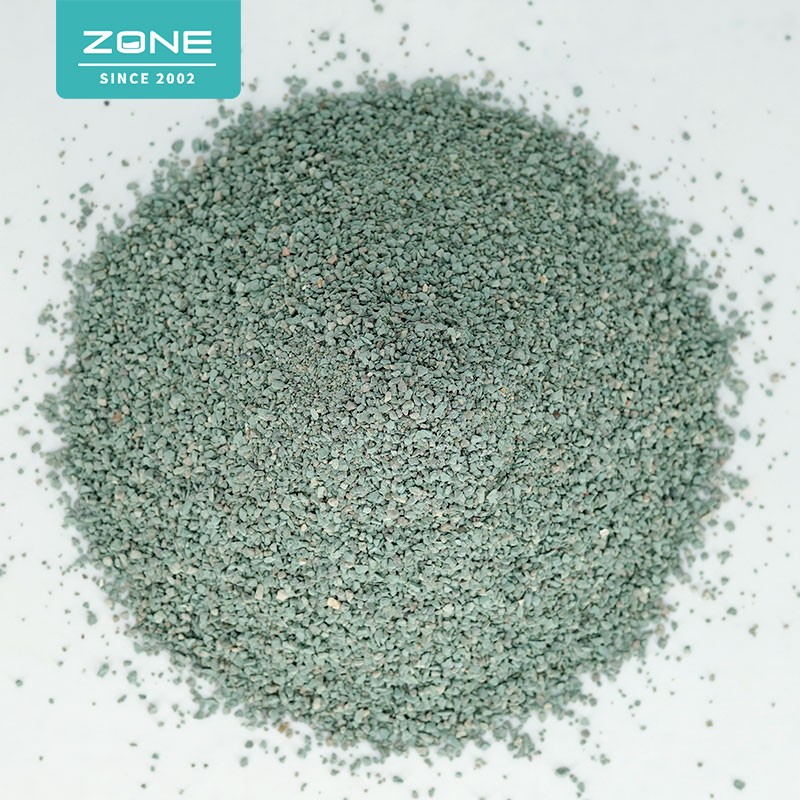

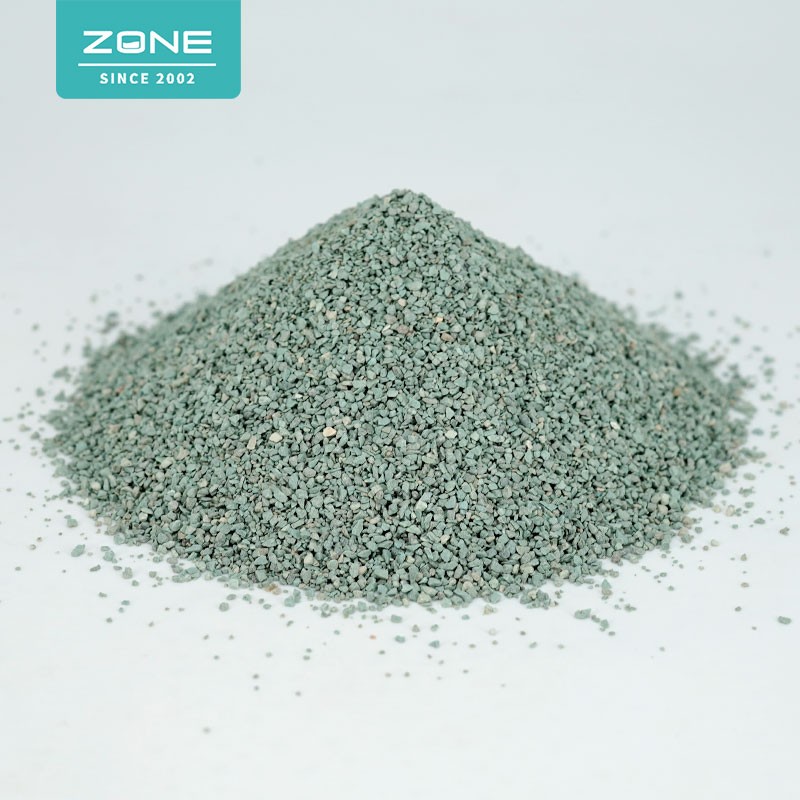

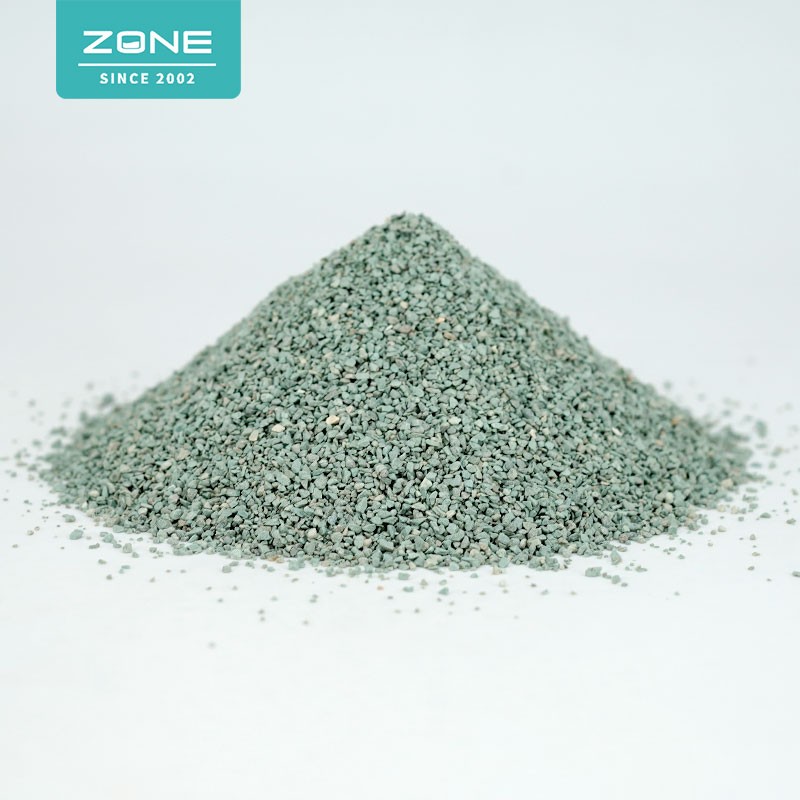

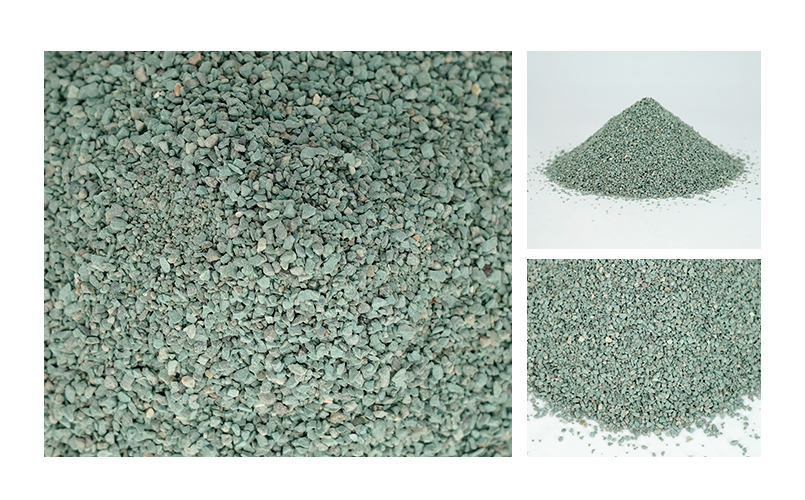

Appearance	Pale green/grey
Porosity	24 - 32%
Service flow rate	15 - 48  m/h
Backwash flow rate	25 - 50  m/h
Filtration (Nominal)	< 3 micron
Particle Size	0.5-1.5 mm、2-3 mm
Recommended backwash velocity:	25–50 m/h.
Bed Depth	Pools  400 - 1000 mm   Others 800 - 1200 mm

ZEOSORB offering:

Much finer nominal filtration (< 3 µm vs. 12–20 µm)

·Higher flow rates (15–48 m/h)
·Significantly greater solids loading capacity (~2.6×)
·Fewer backwash cycles and lower backwash water demand

Thanks to its high loading capacity, ZEOSORB requires about half as many backwash cycles
compared to sand/anthracite.
