From Limescale to Pure Water: How ZONE Anti-Scale Particles Extends RO-Membrane Life by 30 %

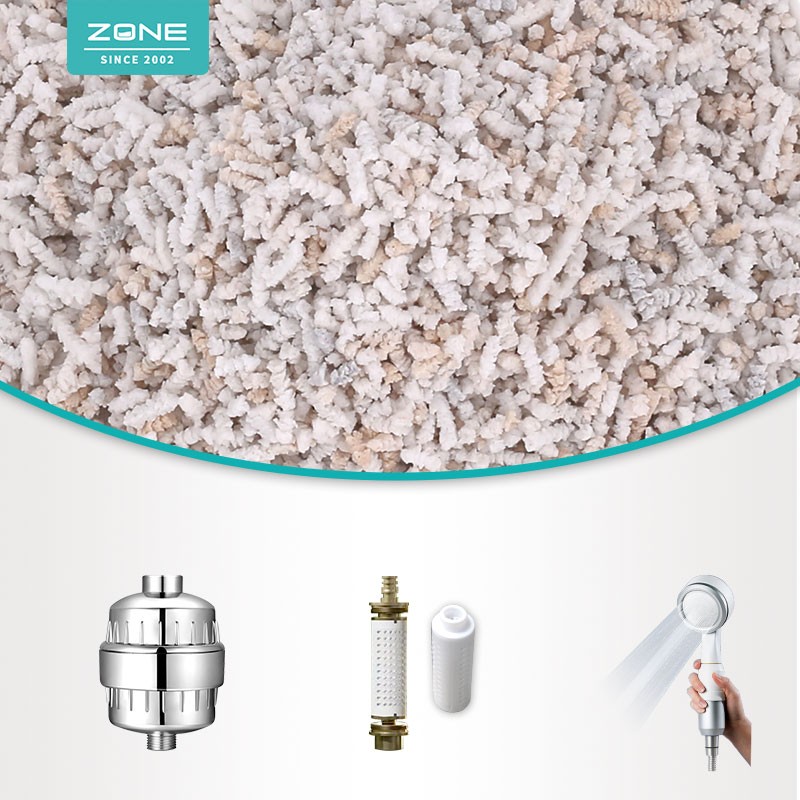

A white “noodle” less than 1 cm across is dropped into a pre-filter housing. Twenty grams treat 20–40 t of tap water, disarm Ca²⁺/Mg²⁺ before they can crystallise, and leave an RO membrane cleaner than the day it was installed. What exactly is it? Today we start with the birth of limescale and tell the story behind ZONE Anti-Scale Particles and the science of functional filter media.



1. Limescale: Public-Enemy No. 1 of RO Membranes

Municipal water usually carries 80–200 mg/L of hardness as CaCO₃. Under 8–12 bar of pressure, 97 % of the water passes through 0.0001 μm pores; calcium, magnesium and bicarbonate are left behind and instantly concentrate 10– to 20-fold. Supersaturated CaCO₃ and CaSO₄ nucleate on the membrane surface:

- Permeate flux drops 30 %

- Pump pressure rises 0.2–0.3 MPa

- Membrane life falls from 36 to 18 months



The American Membrane Technology Association (AMTA) states that 40 % of RO system failures are scaling-related, not fouling.



2. Why Traditional Anti-Scale Methods Fall Short

① Ion-exchange softening: needs brine regeneration, waste ratio 1:1, too bulky for under-sink units.

② Chemical dosing: phosphonates or polycarboxylates require metering pumps and control panels; under- or over-dosing is common.

③ Frequent flush: wastes water, creates noise, still allows micro-scaling.



Is there a “plug-and-play” option that works for domestic, commercial and light-industrial systems? ZONE spent three years turning liquid anti-scalants into a solid, slow-release filter medium—the Anti-Scale Particles.



3. ZONE Anti-Scale Particles: Locking Inhibitors Inside a Polymer Matrix

3.1 Core technology

- Active ingredients: food-grade poly-acrylic acid sodium salt (PAA-Na) + phosphono-butane-tricarboxylic acid (PBTC), synergistic threshold inhibition ≥95 %.

- Release scaffold: cross-linked poly-vinyl alcohol micro-pores (10–50 μm). On contact with water, nano-channels form and deliver 0.5–1.0 mg/L of active ingredient for 20–40 t of throughput.

- Eco-profile: active residue in concentrate <0.1 mg/L, far below the WHO guideline (2.3 mg/L as P).



3.2 Lab data

- Feed hardness 380 mg/L, 50 % recovery: blank RO ΔP +0.15 MPa after 30 d; with ZONE particles ΔP only +0.02 MPa after 90 d, salt rejection stable at 97.4 %.

- Versus a leading imported liquid anti-scalant, same dosage, inhibition efficiency +18 %, phosphate residue in concentrate –45 %.



3.3 Application guide

Application	Recommended dose	Service life	Cost per m³
400 GPD domestic RO	1 particle (20 g)	6–8 months	US $0.004
0.5 m³/h commercial	2 particles parallel	3–4 months	US $0.003
1 m³/h community kiosk	4 particles parallel	2 months	US $0.0025



4. Fun Fact: Shape Matters in Filter-Media 3.0

Media evolution:

1.0 Granular era—sand, GAC, surface adsorption, channeling risk.

2.0 Sintered era—ceramic, UF, high precision but scaling-sensitive.

3.0 Functional extrusion—chemistry shaped into calculable rods, fibres or nets. ZONE particle is a textbook example.



Why a rod?

- Surface/volume ratio +30 %, flow shear helps dissolution.

- Hollow spiral, pressure drop <0.01 MPa, no flux loss.

- Fits any 10-inch PP housing—zero retrofit.



5. Field Story: Dali Ancient Town, Yunnan

Raw water: well, 420 mg/L hardness, 800 ppm TDS

System: 2 m³/h two-stage RO, 60 % recovery

Problem: tourist season 16 h/d, membranes cleaned every 3 months

Retrofit: 8 ZONE sticks in parallel before 5-micron filter

Result: after 8 months membranes visually clean, flux 1.9 m³/h maintained, annual savings US $2,600 (membranes, labour, downtime).



6. FAQ

Q1: Will phosphorus exceed the limit?

A: Total P in one 20 g particle <0.4 g. Treating 20 t water, theoretical increase in concentrate 0.02 mg/L, far below GB 5748-2022 0.5 mg/L limit.



Q2: Difference from silico-phosphate crystals?

A: Crystals need 3–5 days to saturate; release is high at start, low later. ZONE’s micro-pores give constant release, no “peak & valley”.



Q3: Can it replace dosing pumps in every plant?

A: For systems ≤2 m³/h, yes. For large industrial (>10 m³/h) use particles + reduced dosing for best economics.



7. Membrane Care Made Simple

From reactive cleaning to proactive inhibition, ZONE converted three years of R&D into a 20 g particles. Let every drop meet the RO surface pre-softened and scale-free. Visit [ZONE official page] request a free trial—drop it in your pre-filter, open the housing after 90 days and see the difference.



About ZONE

15 years dedicated to functional filter media, National High-Tech Enterprise, 7 patents, CE & RoHS certified. Besides Anti-Scale Particles we supply:

- Silver-impregnated carbon blocks

- Dedicated As/Fe/Mn removal media

- High-dirt-holding gradient PP cartridges

More solutions: [www.onlyzonewater.com]
