Solving the "Fluoride" Dilemma: How Next-Generation Mineral Composite Fluoride Removal Technology Safeguards Healthy Water Sources

Abstract: In fluoride-excessive regions across China, tens of millions face daily health risks from drinking high-fluoride water. This article dives deep into the core technologies of drinking water defluoridation and introduces ZONE's novel mineral composite fluoride removal particles—developed through 21 years of R&D expertise—that achieve efficient, safe, and economical fluoride removal through an innovative dual-reaction mechanism.





I. The "Invisible Killer" in Drinking Water: The Fluorine Excess Problem



Fluorine is an essential trace element for the human body, but "more isn't always better." According to China's Standards for Drinking Water Quality (GB5749-2006), fluoride ion concentration must not exceed 1.0 mg/L. Levels below 0.5 mg/L increase children's dental caries risk, while concentrations above 1.5 mg/L cause enamel fluorosis. Long-term consumption of water exceeding 2.0 mg/L leads to fluorine accumulation in bones, causing dental and skeletal fluorosis—potentially resulting in loss of labor capacity in severe cases.



China has one of the world's largest distributions of high-fluoride groundwater, with fluoride levels in North, Northwest, and Northeast regions often exceeding standards by 3–10 times. Such water typically exhibits high pH and alkalinity, posing challenges for conventional treatment methods.



II. Three Pain Points of Traditional Fluoride Removal Technologies



Current mainstream defluoridation technologies each have limitations:



1. Activated Alumina Method: The most widely used adsorption process relies on γ-alumina's porous structure (specific surface area 260–300 m²/g) and surface hydroxyl groups for fluoride adsorption-ion exchange. However, it requires weakly acidic operation (pH 5.5–6.5), and bicarbonate (HCO₃⁻) interference reduces defluoridation capacity by over 45%. Regeneration demands 60 times the fluoride removal volume in aluminum sulfate solution, incurring high costs.



2. Hydroxyapatite Method: While offering good selectivity, treatment costs reach ~¥0.3/m³, and the filter media suffers from insufficient mechanical strength, prone to fragmentation in complex water matrices.



3. Coagulation-Precipitation: Aluminum salts generate Al(OH)₃ flocs to adsorb fluoride, but produce massive fluoride-laden sludge while risking aluminum ion exceedance in treated water.



These technologies often suffer from rapid capacity decay, frequent regeneration, and escalating operational costs when treating high-alkalinity groundwater with multiple competing ions.

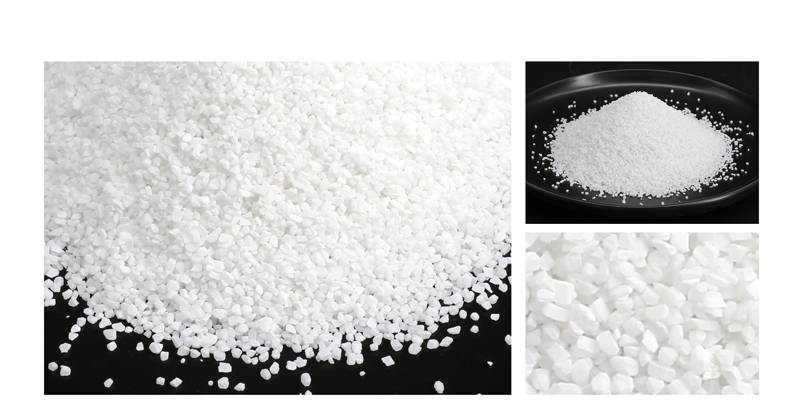

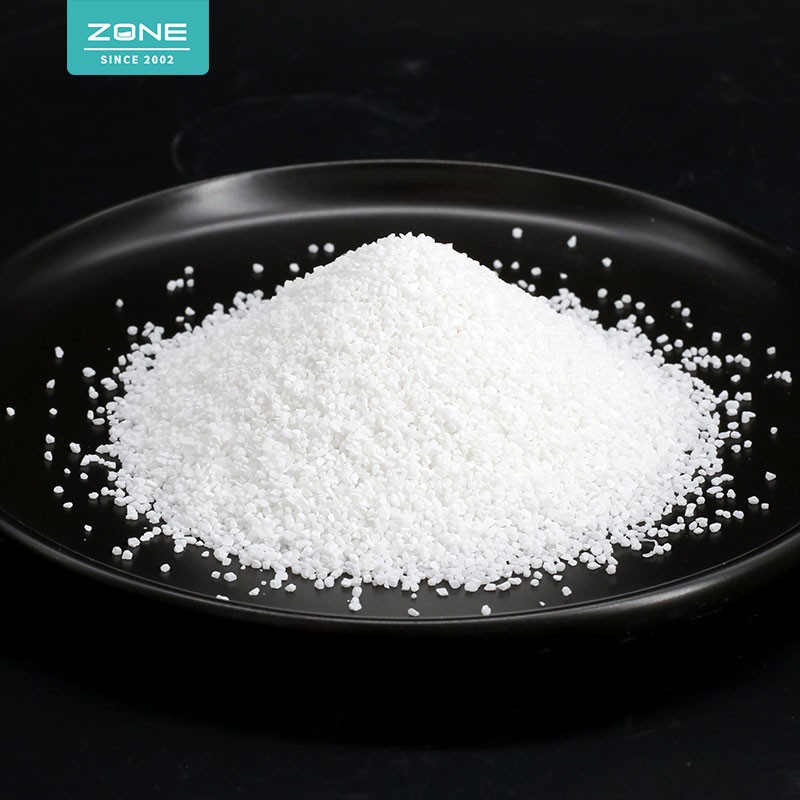

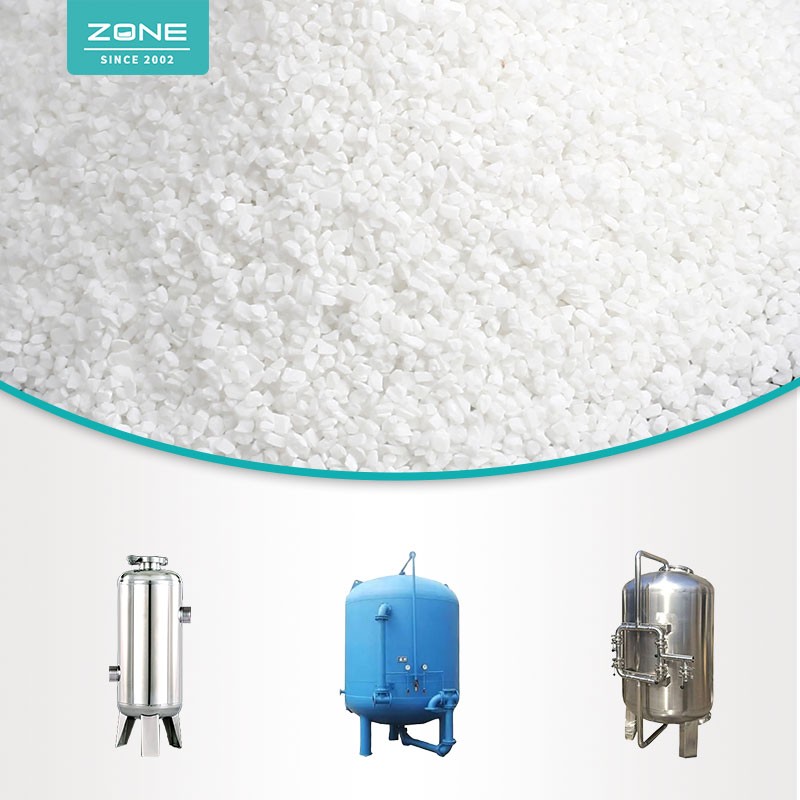

III. ZONE Fluoride Removal Particles: A Technological Breakthrough with Dual-Reaction Mechanism



Addressing industry pain points, ZONE's R&D team—led by Dr. Zhang, a former researcher at China's National Ceramic Research Institute and National Patent Award winner—has developed a novel mineral composite fluoride removal material through 21 years of technical accumulation. With over 3,000 global drinking water projects, its core innovation lies in the dual physical-chemical reaction mechanism:



First Reaction: High-Efficiency Physical Adsorption

Manufactured via a special process creating inner-outer layer pore structures, the material's specific surface area far exceeds traditional media. As fluoride-contaminated water flows through, fluoride ions are rapidly adsorbed onto surface micropores, achieving initial enrichment. This 3D interconnected channel design reduces hydraulic retention time to one-third of conventional processes, enabling equipment volume reduction by 40%.



Second Reaction: Ion Exchange Stabilization

Adsorbed fluoride ions undergo displacement reactions with internal OH⁻ groups, forming stable fluorine compounds. This overcomes the bicarbonate interference plaguing traditional activated alumina, as the material's active components exhibit significantly higher selectivity and affinity for fluoride ions over other anions. Even in harsh water with alkalinity >200 mg/L, stable defluoridation performance is maintained.



IV. Core Advantages of ZONE Fluoride Removal Particles



Based on official product test data, this defluoridation media demonstrates remarkable performance:

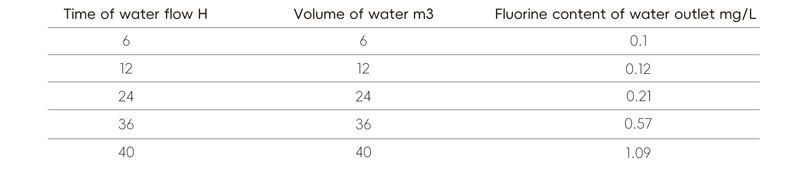

1. Ultra-High Capacity: At 5.0 mg/L influent fluoride and pH 6.8, each ton of media treats >3,000 tons of water with effluent fluoride <1 ppm. Media filling quantity is 30–40% less than activated alumina for equivalent performance, saving equipment investment.



2. Smart Operational Strategy: Initial complete fluoride removal allows raw/treated water blending, protecting the media, extending service life, and reducing operating costs to ¥0.2–0.3/m³.



3. Exceptional Safety: Made from natural mineral composites, no toxic substances leach during use. No influent pH adjustment required, eliminating acid corrosion risks.



4. Simple Regeneration: Uses dilute alkaline solution at ambient temperature—no high-temperature calcination or massive chemical soaking. Regeneration costs are only 20% of conventional methods, with >80% efficiency retention after five cycles.



5. Multi-Functional Synergy: Concurrently removes 40–60% of iron and manganese ions, ideal for complex groundwater remediation.



6. Robust Adaptability: Data from a mining-area groundwater project shows stable effluent fluoride <0.8 mg/L after six months of continuous operation, despite extreme conditions (total hardness 850 mg/L, alkalinity 320 mg/L).

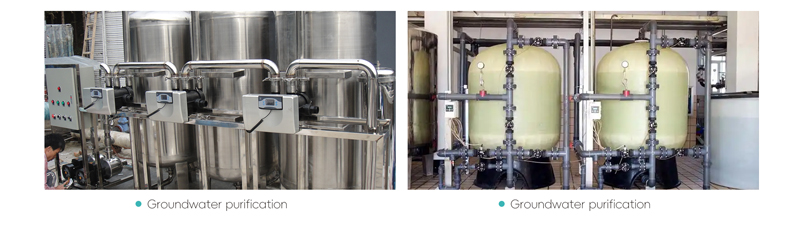

V. Application Scenarios and Engineering Practice



The product has been validated across three typical scenarios:



- Rural Decentralized Water Supply: Single-unit capacity 1–10 m³/h, 24-month media lifespan, simple O&M—ideal for village water stations without dedicated technicians.



- Mineral Water Pretreatment: Precisely removes excessive fluoride while retaining beneficial minerals, ensuring natural mineral water quality remains uncompromised.



- Industrial Wastewater Advanced Treatment: For photovoltaic/electroplating wastewater (50–100 mg/L fluoride), serves as RO membrane pretreatment to protect downstream membrane systems.



VI. Four Key Criteria for Selecting Professional Fluoride Removal Media



1. Technical Pedigree: Prioritize companies with R&D backgrounds. ZONE holds national-level patent awards, operates a 53,800 ft² production base, and has focused exclusively on water treatment media for 21 years.



2. Real-World Data: Demand dynamic pilot data over static lab results. ZONE's specifications are all based on continuous-flow tests at 1 m³/h.



3. Life-Cycle Costing: Calculate media price + regeneration cost + replacement frequency. ZONE particles offer the lowest five-year TCO due to long lifespan and simple regeneration.



4. Comprehensive Service: Look for full-process support from water analysis to regeneration training. ZONE provides free "raw water analysis + customized solution" services.



From activated alumina to mineral composites, defluoridation technology evolution reflects breakthroughs in materials science. ZONE's fluoride removal particles represent not just a product, but the crystallization of 21 years of technical craftsmanship. Through over 3,000 global project applications, we've learned one truth: genuine innovation makes complex water treatment simple and reliable, enabling people in fluoride-affected regions to access safe, healthy, and economical drinking water.



As a hidden champion in the water filter media industry, ZONE will continue advancing mineral material modification technology to deliver optimal solutions for every water source. If your project faces fluoride exceedance challenges, bring us your water quality report—we guarantee a satisfactory answer.
